For other uses, see Piping (erosion), Piping (sewing), Bagpiping, or Pipe (fluid conveyance), or Pipe (disambiguation).
File:Mechanical room.jpg

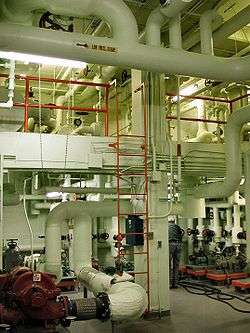

Large-scale piping system in an HVAC mechanical room

Within industry, piping is a system of pipes used to convey fluids (liquids and gases) from one location to another. The engineering discipline of piping design studies the efficient transport of fluid.[1][2]

Industrial process piping (and accompanying in-line components) can be manufactured from wood, fiberglass, glass, steel, aluminum, plastic, copper, and concrete. The in-line components, known as fittings, valves, and other devices, typically sense and control the pressure, flow rate and temperature of the transmitted fluid, and usually are included in the field of Piping Design (or Piping Engineering). Piping systems are documented in piping and instrumentation diagrams (P&IDs). If necessary, pipes can be cleaned by the tube cleaning process.

"Piping" sometimes refers to Piping Design, the detailed specification of the physical piping layout within a process plant or commercial building. In earlier days, this was sometimes called Drafting, Technical drawing, Engineering Drawing, and Design but is today commonly performed by Designers who have learned to use automated Computer Aided Drawing / Computer Aided Design (CAD) software.

Plumbing is a piping system that most people are familiar with, as it constitutes the form of fluid transportation that is used to provide potable water and fuels to their homes and business. Plumbing pipes also remove waste in the form of sewage, and allow venting of sewage gases to the outdoors. Fire sprinkler systems also use piping, and may transport nonpotable or potable water, or other fire-suppression fluids.

Piping also has many other industrial applications, which are crucial for moving raw and semi-processed fluids for refining into more useful products. Some of the more exotic materials of construction are Inconel, titanium, chrome-moly and various other steel alloys.

Engineering subfields

Generally, Industrial Piping Engineering has three major subfields:

  • Piping Material
  • Piping Design
  • Stress Analysis

Stress analysis

Process piping and power piping are typically checked by Pipe Stress Engineers to verify that the routing, nozzle loads, hangers, and supports are properly placed and selected such that allowable pipe stress is not exceeded under different situation such as sustain, operating, pressure testing etc, as per the ASME B31, EN 13480 or any other applicable codes and standards. It is necessary to evaluate the mechanical behavior of the piping under regular loads (internal pressure and thermal stresses) as well under occasional and intermittent loading cases such as earthquake, high wind or special vibration, and water hammer.[3][4] This evaluation is usually performed with the assistance of a specialized (finite element) pipe stress analysis computer program such as CAESAR II, ROHR2, CAEPIPE and AUTOPIPE.

In cryogenic pipe supports, most steel become more brittle as the temperature decreases from normal operating conditions, so it is necessary to know the temperature distribution for cryogenic conditions. Steel structures will have areas of high stress that may be caused by sharp corners in the design, or inclusions in the material. [5]

Wooden piping history

Early wooden pipes were constructed out of logs that had a large hole bored lengthwise through the center. Later wooden pipes were constructed with staves and hoops similar to wooden barrel construction. Stave pipes have the advantage that they are easily transported as a compact pile of parts on a wagon and then assembled as a hollow structure at the job site. Wooden pipes were especially popular in mountain regions where transport of heavy iron or concrete pipes would have been difficult.

Wooden pipes were easier to maintain than metal, because the wood did not expand or contract with temperature changes as much as metal and so consequently expansion joints and bends were not required. The thickness of wood afforded some insulating properties to the pipes which helped prevent freezing as compared to metal pipes. Wood used for water pipes also does not rot very easily. Electrolysis, that bugbear of many iron pipe systems, doesn't affect wood pipes at all, since wood is a much better electrical insulator.

In the Western United States where redwood was used for pipe construction, it was found that redwood had "peculiar properties" that protected it from weathering, acids, insects, and fungus growths. Redwood pipes stayed smooth and clean indefinitely while iron pipe by comparison would rapidly begin to scale and corrode and could eventually plug itself up with the corrosion. [6]

Materials

The material with which a pipe is manufactured often forms as the basis for choosing any pipe. Materials that are used for manufacturing pipes include:

  • Carbon Steel (CS)
  • Low Temperature Service Carbon Steel (LTCS)
  • Stainless Steel (SS)
  • Non Ferrous Metals (Inconel, Incoloy, Cupro-nickel, etc.)
  • Non Metallic (GRE, PVC, HDPE, tempered glass, etc.)

Standards

There are certain standard codes that need to be followed while designing or manufacturing any piping system. Organizations that promulgate piping standards include:
